Tree

Tree displays nested data as expandable rows. Reach for it when the hierarchy itself is the point — file trees, document outlines, settings navigation, grouped pickers. For flat records with columns, sorting, filtering, and paging, use DataTable instead.

Every node is an object handle: add() returns a TreeNode that you hold and pass back to expand(), select(), remove(), and the rest — there are no string ids to track. A node shows an icon and a label, knows its place in the hierarchy, and carries an open-ended data bag for your own attributes.

Usage

Building the tree

The quickest way to populate a tree is the nodes argument — a nested list of specs, where each spec is a label string or a dict. The recognized display keys are label, icon (plus open_icon / closed_icon), expanded, and children; any other key is kept on the node’s data bag.

bs.Tree(nodes=[
    {
        "label": "src",
        "icon": "folder-fill",
        "expanded": True,
        "children": [
            {"label": "app.py", "icon": "file-earmark-code"},
            {"label": "tree.py", "icon": "file-earmark-code"},
        ],
    },
    {"label": "README.md", "icon": "file-earmark-text"},
])

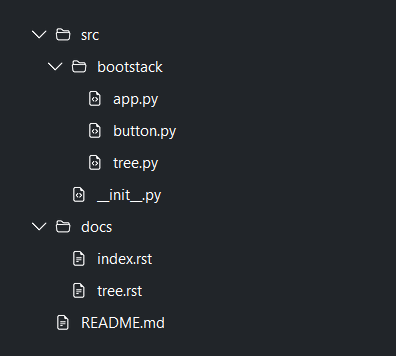

A row shows an optional icon followed by its label — the same content a ttk.Treeview row gives you, rendered as real widgets. (Richer per-row content via a custom node renderer is planned for a future release.)

To build the tree imperatively, call add(). It returns a TreeNode handle you keep; pass parent= to nest, or call node.add() to add a child to a node you already hold:

tree = bs.Tree()
src = tree.add("src", icon="folder-fill", expanded=True)
tree.add("app.py", parent=src, icon="file-earmark-code")
button = src.add("button.py", icon="file-earmark-code")   # via the handle

Rearrange the tree at runtime with insert(), move(), remove(), and clear():

tree.insert(0, "first.py", parent=src)   # at a specific sibling position
tree.move(button, parent=None)           # promote to a root node
tree.remove(src)                         # removes the node and its subtree

Each handle knows its place in the hierarchy through node.children, node.parent, node.depth, node.ancestors(), node.descendants(), node.is_leaf, and node.expandable. Declarative construction doesn’t hand back any handles, so recover them from the tree with roots, walk() (every node, depth-first), or find(predicate):

tree = bs.Tree(nodes=PROJECT)
readme = tree.find(lambda n: n.label == "README.md")

Carrying extra data

The display keys (label, icon …) are a view over the node, not the node itself. Whatever you don’t spend on a display key rides along on the node’s data dict — passed as data=, as extra keyword arguments to add(), or as extra keys in a nodes= spec. Nothing is stripped, so a handler always gets your own domain object back:

node = tree.add("invoice.pdf", icon="file-earmark", record_id=42, status="paid")
node.data["record_id"]   # 42

tree.on_activate(lambda n: open_record(n.data["record_id"]))

A tree is always in-memory, so data can hold any Python object — the same principle DataTable and ListView records follow (see Carrying extra data).

Expanding and lazy loading

A node with children shows a chevron. Drive expansion programmatically, or reveal() a deep node to open its ancestors and scroll it into view:

tree.expand(node)
tree.collapse(node)
tree.expand_all()
tree.collapse_all()
tree.reveal(deep_node)   # opens ancestors + scrolls into view

Give a node open_icon and closed_icon to swap its icon with expansion state — the classic open/closed folder:

tree.add("src", open_icon="folder2-open", closed_icon="folder-fill")

When a branch is expensive to build, pass a loader instead of children. It runs the first time the node is expanded, receives the node, and returns child specs (the same format as nodes=); the result is cached. Child specs can carry their own loader, so deep trees load level by level, and reload_children() drops and re-fetches a branch:

def load_children(node):
    records = fetch_from_db(node.data["id"])
    return [{"label": r.name, "icon": "file-earmark"} for r in records]

tree.add("Reports", icon="folder-fill", loader=load_children)
tree.reload_children(reports_node)   # later, to refresh

Selection

selection_mode sets how many nodes can be selected at once: 'single' (default), 'multi', or 'none' for a display-only tree. Set show_selection_controls=True to show a per-node affordance — a checkbox in multi mode, a radio in single mode — mirroring ListView and DataTable.

bs.Tree(nodes=PROJECT, selection_mode="single")
bs.Tree(nodes=PROJECT, selection_mode="multi", show_selection_controls=True)

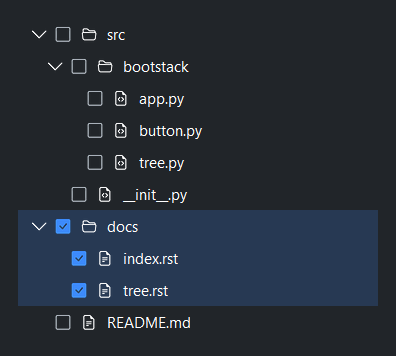

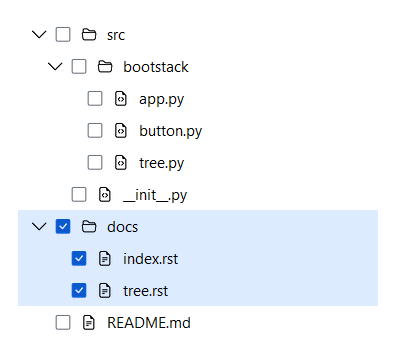

In multi mode the selection cascades: checking a parent checks all of its descendants, and a partially-checked parent shows a mixed (dash) marker.

Read the selection through the selection property — a single TreeNode (or None) in single mode, a list of nodes in multi mode; each node’s data bag is at node.data. Or change it in code:

tree.select(node)
tree.deselect(node)
tree.select_all()        # multi mode only
tree.clear_selection()

By default a row click selects the row. Pair select_on_click=False with show_selection_controls=True when a click should open a node (via on_activate) rather than select it, leaving the control as the only way to select — the file-explorer pattern.

Events

All on_* methods return a Subscription when called with a handler, or a Stream when called without one; call .cancel() on the subscription to unsubscribe. on_select delivers a TreeSelectionEvent (with nodes); on_activate, on_expand, and on_collapse pass the affected TreeNode; and on_right_click carries enough to position your own menu.

tree.on_select(lambda e: print([n.label for n in e.nodes]))
tree.on_activate(lambda node: open_file(node))          # double-click / Enter
tree.on_expand(lambda node: print("opened", node.label))
tree.on_collapse(lambda node: print("closed", node.label))
tree.on_right_click(lambda e: print(e["node"], e["x_root"], e["y_root"]))

Once focused, the tree is fully keyboard driven: arrow keys move the cursor, Left / Right collapse and expand, Home / End jump to the first and last node, Enter activates, Space toggles selection, and typing runs a type-ahead search.

Context menu

set_context_menu(builder) attaches a per-node right-click menu. The builder runs on each right-click with the clicked node and a fresh ContextMenu to populate, so the items can depend on the node:

def build(node, menu):
    menu.add_item("Rename", on_click=lambda: rename(node))
    if not node.is_leaf:
        menu.add_item("Expand all", on_click=lambda: tree.expand(node))
    menu.add_separator()
    menu.add_item("Delete", icon="trash", on_click=lambda: tree.remove(node))

tree.set_context_menu(build)

Pass None to detach. For full control over positioning, skip the helper and listen to on_right_click directly.

Appearance

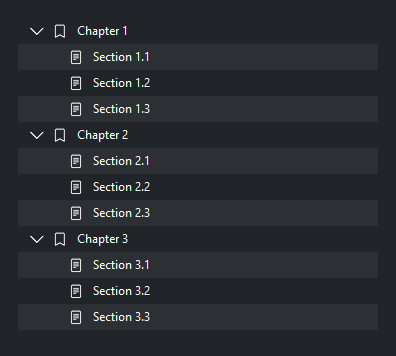

indent sets the per-level indent in pixels, striped=True alternates row backgrounds, density='compact' tightens row height, and accent colors the selection. The vertical scrollbar shows by default; pass show_scrollbar=False to hide it (mousewheel scrolling still works).

bs.Tree(nodes=PROJECT, indent=24, striped=True, density="compact", accent="success")

Widget sizing

All widgets accept self-placement kwargs via **kwargs. The parent container determines which options apply — stack-based parents use stack kwargs, grid-based parents use grid kwargs. Unrecognised keys are silently ignored.

Stack

Used inside VStack, HStack, App, and other stack containers.

fill	Fill direction: 'x', 'y', 'both', or 'none'.
expand	Grow to consume extra space in the parent. True or False.
anchor	Alignment when the widget does not fill the available slot: 'n', 's', 'e', 'w', 'center', 'nw', etc.
margin	External spacing in pixels. Accepts an integer (equal on all sides), a 2-tuple (horizontal, vertical), or a 4-tuple (left, top, right, bottom).
margin_x	Horizontal external spacing (left and right). Accepts an integer or a 2-tuple (left, right) for asymmetric spacing. Overrides the horizontal component of margin=.
margin_y	Vertical external spacing (top and bottom). Accepts an integer or a 2-tuple (top, bottom) for asymmetric spacing. Overrides the vertical component of margin=.

Grid

Used inside a Grid container.

row / column	Zero-based row and column indices.
rowspan / columnspan	Number of rows or columns to span.
sticky	Alignment and fill within the grid cell. Any combination of 'n', 's', 'e', 'w' — e.g. 'ew' stretches horizontally, 'nsew' fills the entire cell.
margin	External spacing in pixels. Accepts an integer, a 2-tuple (horizontal, vertical), or a 4-tuple (left, top, right, bottom).
margin_x	Horizontal external spacing. Accepts an integer or (left, right).
margin_y	Vertical external spacing. Accepts an integer or (top, bottom).

See also

• DataTable — flat records with columns, sorting, filtering, and paging.

• ListView — a flat virtual list with the same selection model.

API

The complete reference for Tree and its TreeNode row handles lives on the Widgets API page. At a glance:

Tree	A hierarchical tree for navigation and selection.
TreeNode	A single node in a Tree.

Full Example

# A declarative file tree. Folders use open/closed icon variants.
PROJECT = [
    {
        "label": "src",
        "open_icon": "folder2-open",
        "closed_icon": "folder-fill",
        "expanded": True,
        "children": [
            {
                "label": "bootstack",
                "open_icon": "folder2-open",
                "closed_icon": "folder-fill",
                "expanded": True,
                "children": [
                    {"label": "app.py", "icon": "file-earmark-code"},
                    {"label": "button.py", "icon": "file-earmark-code"},
                    {"label": "tree.py", "icon": "file-earmark-code"},
                ],
            },
            {"label": "__init__.py", "icon": "file-earmark-code"},
        ],
    },
    {
        "label": "docs",
        "open_icon": "folder2-open",
        "closed_icon": "folder-fill",
        "children": [
            {"label": "index.rst", "icon": "file-earmark-text"},
            {"label": "tree.rst", "icon": "file-earmark-text"},
        ],
    },
    {"label": "README.md", "icon": "file-earmark-text"},
]

# An outline — every undisplayed attribute rides along in node.data.
OUTLINE = [
    {"label": f"Chapter {i}", "icon": "bookmark", "expanded": True, "page": i * 10,
     "children": [
         {"label": f"Section {i}.{j}", "icon": "file-text", "page": i * 10 + j}
         for j in range(1, 4)
     ]}
    for i in range(1, 4)
]


def load_users(node):
    """Lazy loader — children fetched on first expand."""
    return [
        {"label": f"User {i}", "icon": "person-fill", "user_id": 100 + i}
        for i in range(1, 6)
    ]


with bs.App(title="Tree Demo", padding=20, gap=16, minsize=(900, 640)) as app:
    with bs.Grid(columns=2, gap=20, fill="both", expand=True, sticky_items="nsew"):

        # Column 1: file tree with open/closed folder icons
        with bs.VStack(gap=6):
            bs.Label("Icons + Nesting", font="heading-sm")
            bs.Tree(nodes=PROJECT, fill="both", expand=True)

        # Column 2: multi-select with tri-state cascade controls
        with bs.VStack(gap=6):
            bs.Label("Multi-Select + Cascade", font="heading-sm")
            bs.Tree(
                nodes=PROJECT,
                selection_mode="multi",
                show_selection_controls=True,
                accent="primary",
                fill="both", expand=True,
            )

        # Column 3: striped + compact density (data rides in node.data)
        with bs.VStack(gap=6):
            bs.Label("Striped + Compact", font="heading-sm")
            outline = bs.Tree(
                nodes=OUTLINE, striped=True, density="compact",
                accent="success", fill="both", expand=True,
            )
            outline.on_activate(lambda n: print("page", n.data.get("page")))

        # Column 4: lazy loading + context menu
        with bs.VStack(gap=6):
            bs.Label("Lazy Loading + Menu", font="heading-sm")
            lazy = bs.Tree(fill="both", expand=True)
            lazy.add("Team", icon="people-fill", loader=load_users)
            lazy.add("Guests", icon="people", loader=load_users)

            def build_menu(node, menu):
                menu.add_item("Reveal", icon="eye", on_click=lambda: lazy.reveal(node))
                menu.add_item("Remove", icon="trash", on_click=lambda: lazy.remove(node))

            lazy.set_context_menu(build_menu)

app.run()
